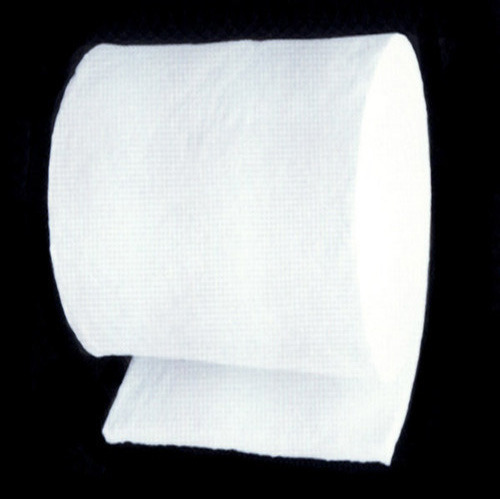

Ceramic Insulation Blanket

Ceramic Insulation Blanket
Ceramic Insulation Blanket
Product Code : CIB-03
Brand Name : J. R. REFRACTORY
Trade Information
  • Price
  • Minimum Order Quantity
  • 27 Metric Tons
  • FOB Port
  • Mundra Port, India
  • Payment Terms
  • Cash on Delivery (COD), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • 500 MT Per Month
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • PACKED IN FUMIGATED WOODEN PALLETS OF 36”X36”
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Certifications
  • CERTIFICATE OF ORIGIN, FUMIGATION CERTIFICATE, TEST REPORT
Product Description

Ceramic Insulation Blanket

For the last one decade, we have been manufacturing and exporting a superior range of Ceramic Insulation Blanket. These blankets are designed from high purity spun ceramic fibers at our state of the art manufacturing unit. Our Ceramic Insulation Blanket is used for lining, insulation and repair for furnaces, kilns, ovens & boilers. These blankets are also used as insulation for high temperature pipe or metal casting. Moreover, we offer blankets to the clients in various lengths and thicknesses to pick from.

Features:

  • Preferred for lightweight, low thermal conductivity and high temperature stability
  • Fire-proof and excellent sound barrier
  • Low heat capacity and thermal conductivity

Characteristics of Ceramic Fibre Blanket

  • Excellent heat stability and chemistry quality
  • Thermal shock resistance
  • Good performance of thermal insulation
  • Fire-proof and sound-absorbing
  • Ultimate tensile strength
  • Low shrinkage
  • Low thermal conductivity
  • Low heat storage

Application:

  • Furnace repair
  • Furnace, kiln, reformer and boiler linings
  • High-temperature kiln and furnace insulation
  • Flexible high temperature pipe insulation
  • Investment casting mold wrapping
  • Primary reformer heater insulation
  • Furnace door linings and seals
  • Reusable insulation for steam and gas turbines
  • High temperature gasketing
  • Field steam generator lining
  • Nuclear insulation applications
  • Expansion joint seals
  • Glass furnace crown insulation
  • Thermal reactor insulation
  • Pressure and cryogenic vessel fire protection
  • Soaking pit seals
  • Removable casting mold wrapping
  • Removable insulating blankets for stress relieving welds
  • High temperature filtration
  • Incineration equipment and stack linings

Steel industry

  • Soaking Pit Convers and Seals
  • Furnace Hot Face RepairsHeat Treating and Annealing Furnaces
  • Furnace Door Linings and Seals
  • Reheat Furnaces
  • Ladle Covers

Power generation

  • Boiler Insulation
  • Reusable Turbine CoversBoiler Doors
  • Pipe Covering

Other applications

  • Insulation of Commercial Dryers and Covers
  • Glass Furnace Crown InsulationVeneer Over Existing Refractory
  • Stress Relieving Furnaces
  • Fire Protection

Ceramic industry

  • Kiln Car Insulation and Seals
  • Continuous and Batch Kilns

Specification

Type

Ordinary

Standard

High Purity

High Aluminium

Zirconia

Classification temperature (°C)

1100

1260

1260

1360

1430

Working Temperature (°C)

< 1000

1050

1100

1200

1350

Color

white

spotlessly white

spotlessly white

spotlessly white

spotlessly white

Density  (kg/m3)

96
128

96
128

96
128

128
160

128
160

Shrinkage on heating (%) (24 hours,density as 128/m3)

-4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3)

0.09(400°C)
0.16(800°C)

0.09(400°C)
0.16(800°C)

0.09(400°C)
0.16(800°C)
0.20(1000°C)

0.12(600°C)
0.20(1000°C)

0.16(800°C)
0.20(1000°C)

Tensile strength (MPa)
(density as 128kg/m3)

0.04

0.04

0.04

0.04

0.04

Chemical composition
 (%)

AL2O3

44

46

47-49

52-55

39-40

AL2O3+SIO2

96

97

99

99

0

AL2O3+SIO2+ZrO2

0

0

0

0

99

ZrO2

0

0

0

0

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

0.5

0.5

0.2

0.2

0.2

Size  (mm)

Spec. 720061010-50 Other sizes can be available.


Bulk Fiber

Properties

High Temp.

Regular Temp.

Low Temp.

Maximum use temperature ºC

1400

1260

980

Density kg/m³[lbs/ft³]

80 ~ 100 [5 ~ 6.3]

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

0.12 [0.83]

Applications

Expansion joints packing and filling secondary processing

Ceramic Fiber Blankets

Properties

High Temp.

Regular Temp.

Low Temp.

Maximum use temperature ºC

1400

1260

980

Dimensions , mm

Width : 610, 1220, Lenght : 7620

Density kg/m³[lbs/ft³]

64, 96 and 128 [4,6and 8]

Thickness , mm

13,19,25,38 and 50

25 and 50

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

0.11 [0.76]

Applications

Crude oil, reformer and pyrolysis heater linings, high temperature pipe duct and turbine insulation, tube seals, gaskets and expansion joints heat treating and annealing furnaces, reheating furnaces, soaking pit cover and relieving insulation, ovens and stacks linings. Boiler and air preheater insulation. Fire protection etc.

Ceramicfiber Modules

Properties

Anchores

Veneered

Maximum use temperature ºC

High temp. : 1425, Regular temp : 1300

Dimensions , mm

300x300 and 300x600

300x300

Density kg/m³[lbs/ft³]

128 ~ 160 [8 ~ 10]

96 ~ 128 [6 ~ 8]

Thickness , mm

100,150,200,250 and 300

50,75,100 and 150

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

0.12 [0.84]

Applications

HIgh temperature lining for heater, furnaces, reformers, kills and soaking pit seals

Hot face veneering over existing structurally sound brick or monolithic refractory lining in furnaces heater kills etc.

Ceramic fiber boards/ Shapes

Properties

High temp.

A

Regular temp.

Low temp.

Maximum use temperature ºC

1400

1260

1200

1000

Dimensions , mm

305x610, 457x914, 610x610, 610x914 914x1219

Density kg/m³[lbs/ft³]

288 ~ 352

[18 ~ 22]

416 ~ 480

[26 ~ 30]

320 ~ 384

[20 ~ 24]

224 ~ 288

[14 ~ 8]

Thickness , mm

13,19,25,38,50,63 and 75

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

0.1 [0.70]

Applications

Combustion chambers of boilers and heater hot face lining for furnaces and kilns backup insulation for monolithic and brick lining. Ladle covers, Auminum trough liners and special shapes, trough covers. Expansion joints hot gas duct liners, riser sleeves, crucibles, launders, tab-out cones, sight holes etc.

Ceramic fiber specialities (1)

Properties

Wet Wrap

Cement

Coating

Maximum use temperature ºC

1260 ~ 1400

Up to 1260

1260 ~ 1400

Dimensions/Packing

610x914 mm

10kg ucket

5 litre container

Density kg/m³[lbs/ft³]

320 [20]

-

-

Thickness , mm

6,13,19 and 25

-

-

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

0.13 [0.09] on drying

-

-

Applications

Combustion chamber linings, boiler doors launders, ladle linings

Refractory adhesive repair work

Surface stabilization for modules in areas of flame impingement, high velocity, combustion gases or chemical attack

Ceramic fiber specialities (2)

Properties

Veneer mortar (HT & 90AL)

Mouldable F / Mouldable joint pax

Rope

Maximum use temperature ºC

Up to 1260 & 1400

Up to 1400

1260 ~ 1400

Dimensions/Packing

20kg bucket

5kg bucket

Running length

Density kg/m³[lbs/ft³]

-

-

192 ~ 240 [12 ~ 15]

Thickness , mm

-

-

13,19,25,38 and 50

Thermal conductivity for 128 kg/m³ at mean temp. Of 550ºC w/mºk [BTU-in/hrft²of]

-

-

0.15 [1.0

Applications

For sticking veneer modules

Protective coating patch repair work, Various sealing applications

Expansion joints gaskets, sealing wrapping substitute for asbestos
